Floor Tape Applicator
- For 50mm, 75mm & 100mm PermaStripe®, PermaRoute® & PermaLean®
- Includes guide rollers with adjusters
- Integrated systems to apply line marking tape
- Ergonomic handle for more comfort
Improves 5S Optimisation
Hands Free Application
Easy to Apply
Available For Hire
Enquiry
Enquiry

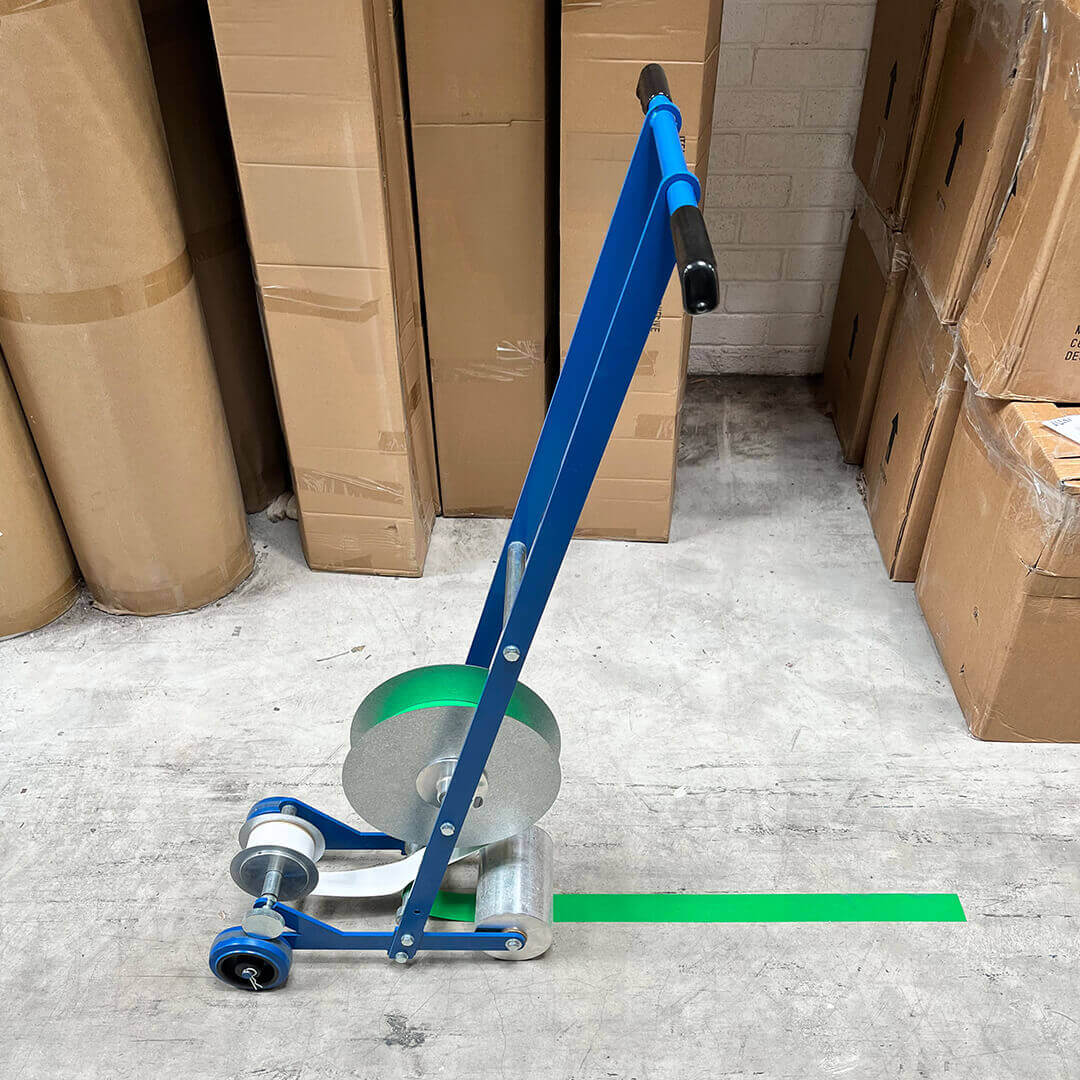

Line Marking Applicator Overview

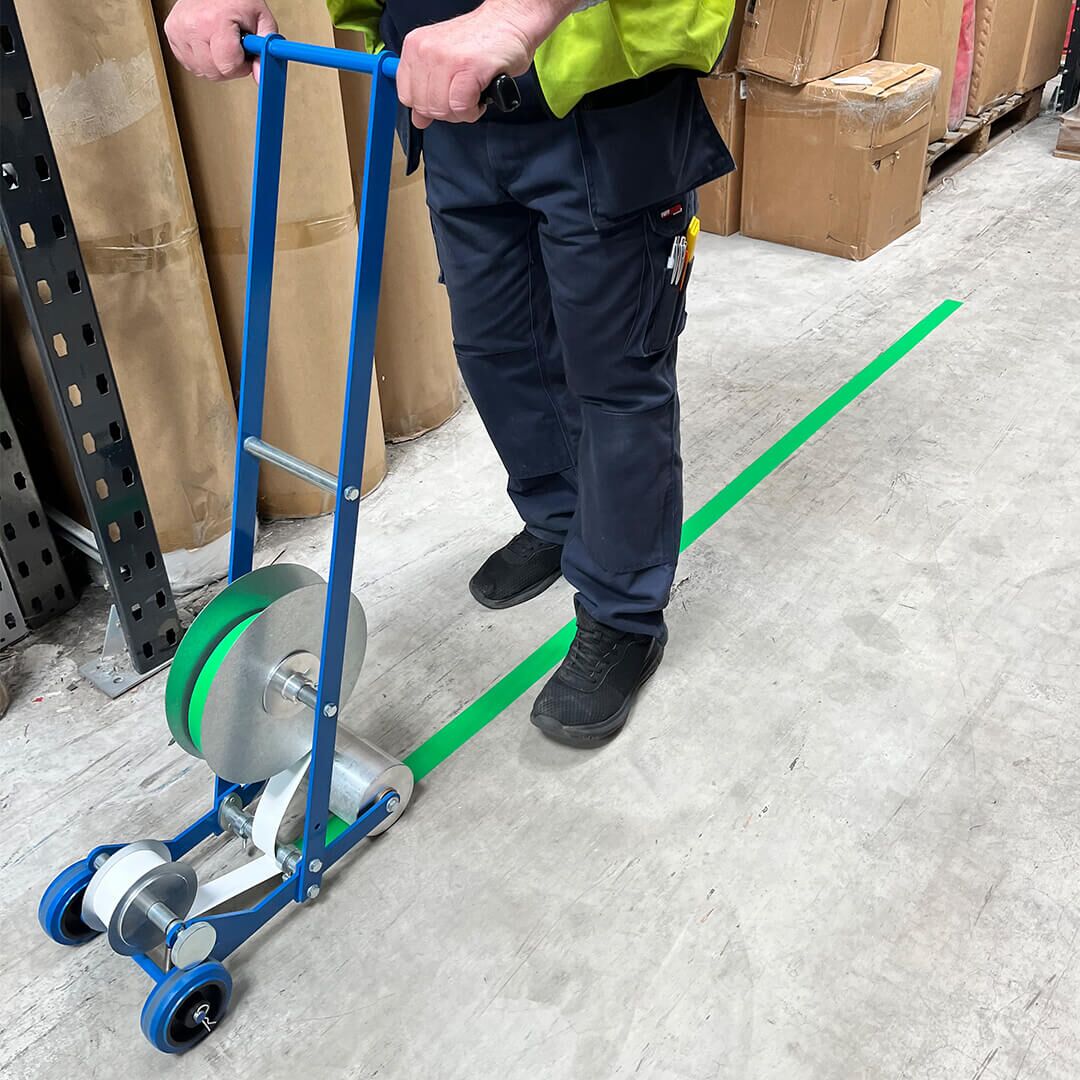

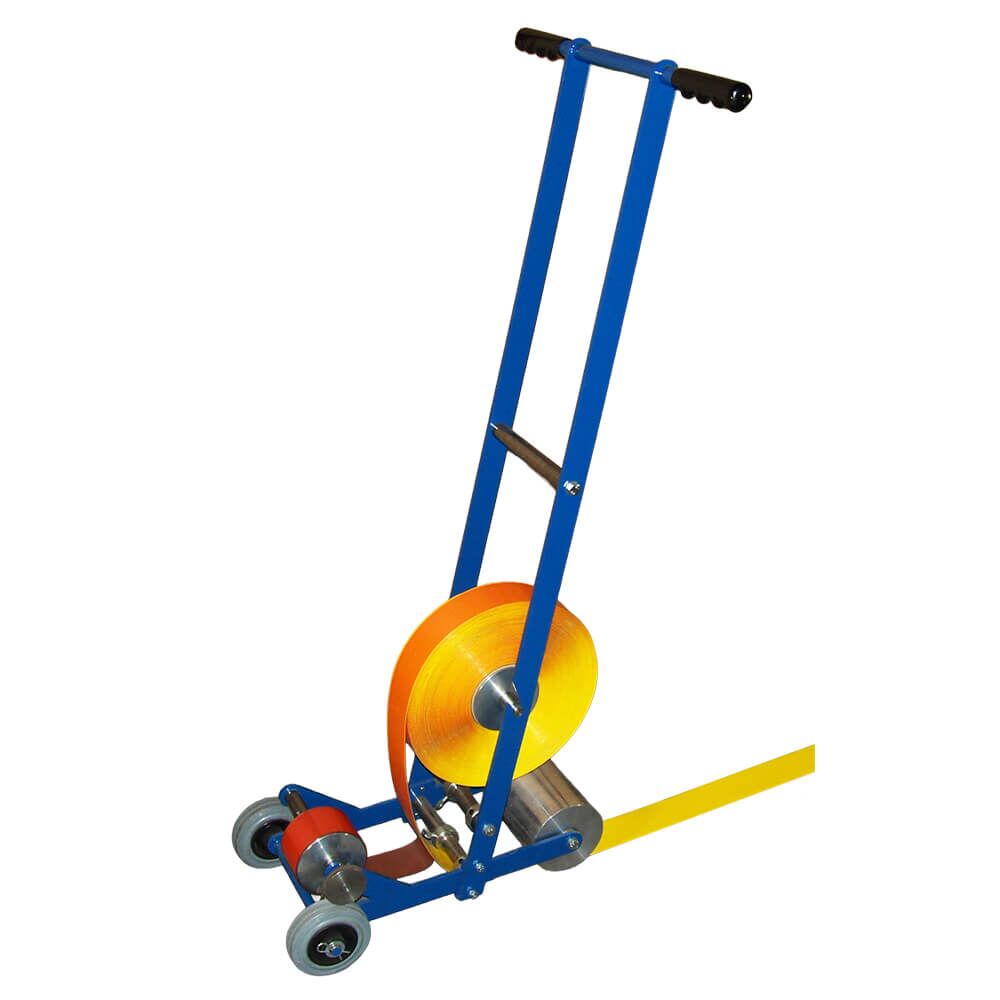

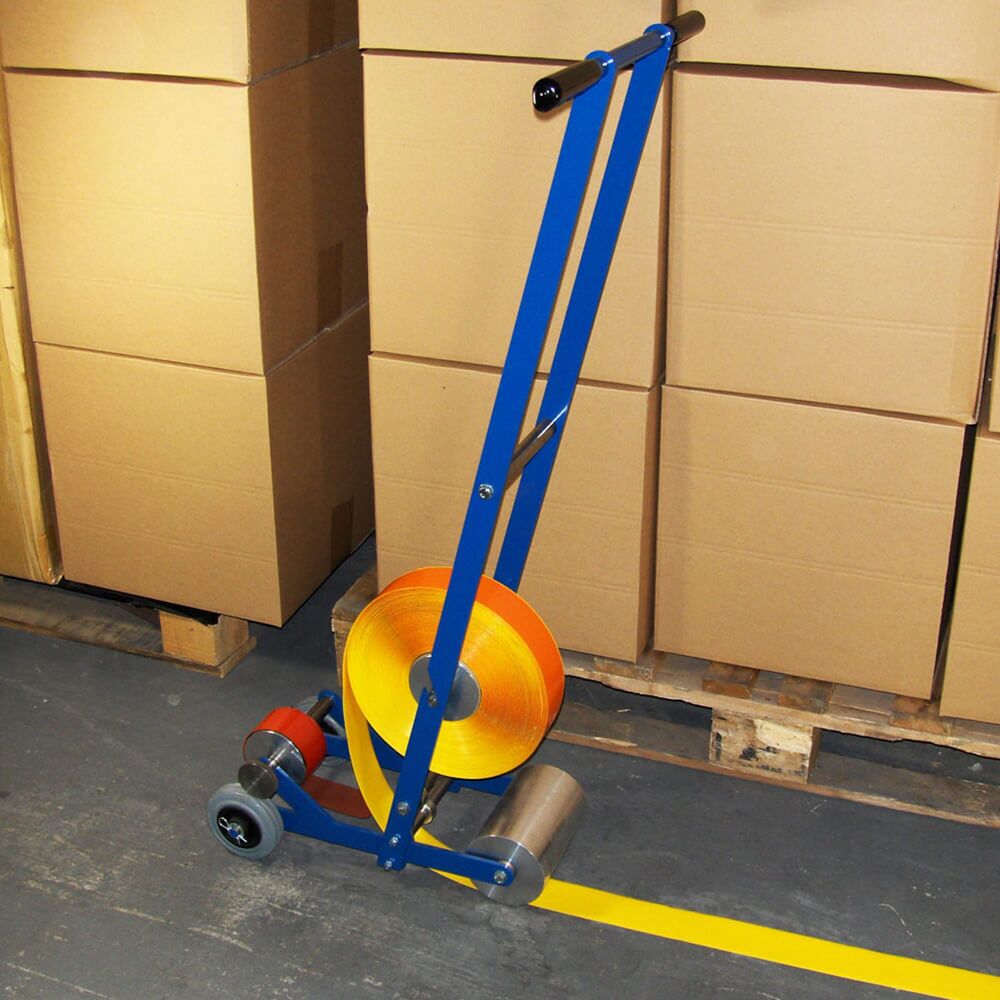

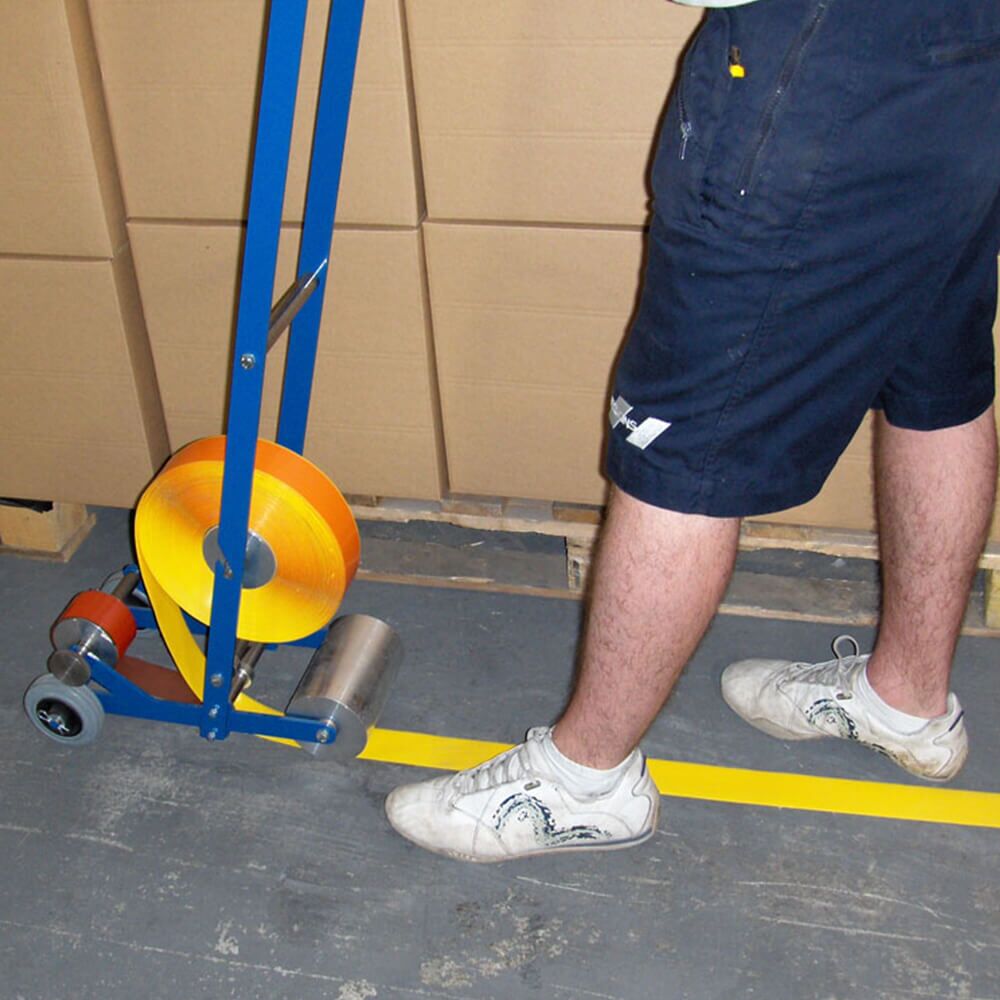

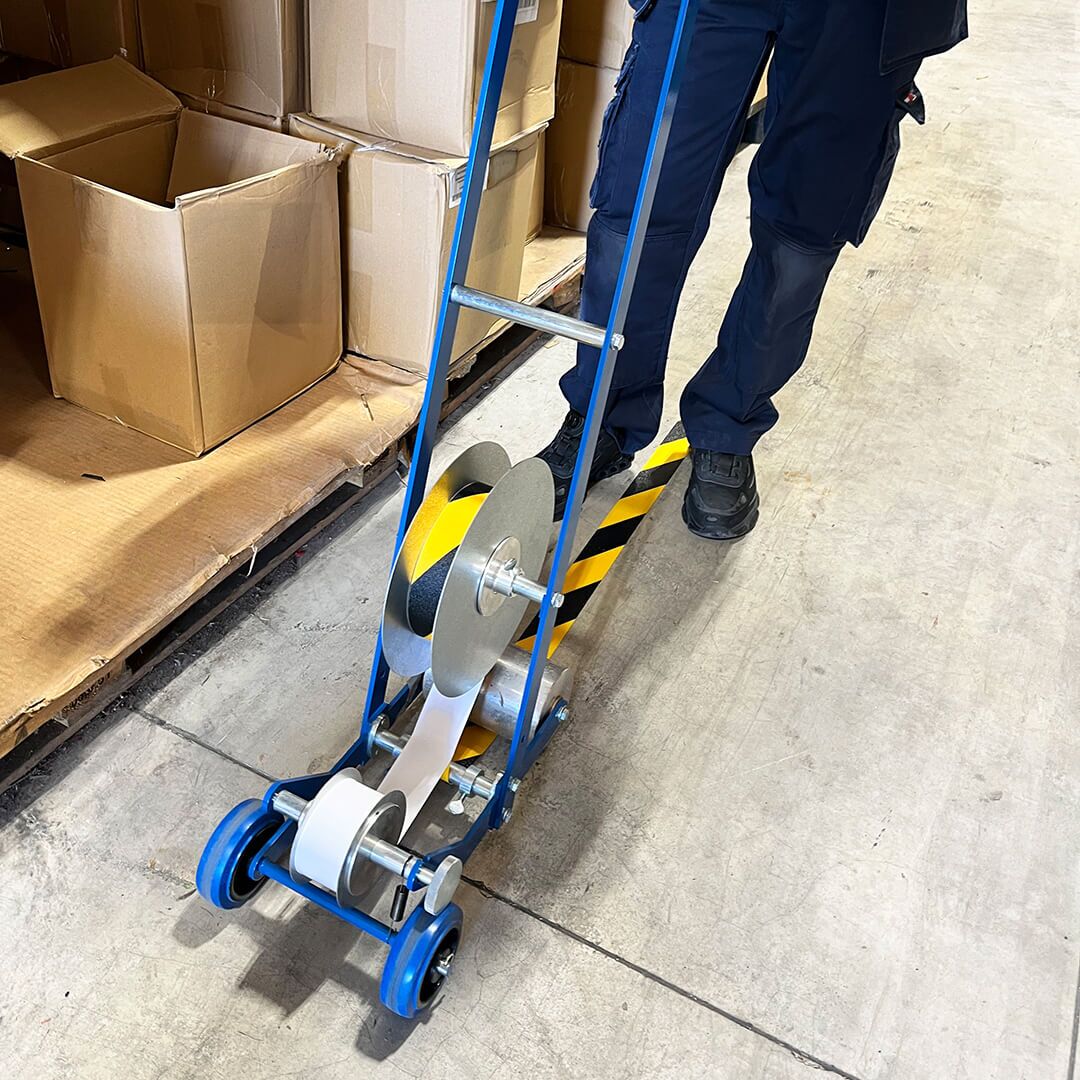

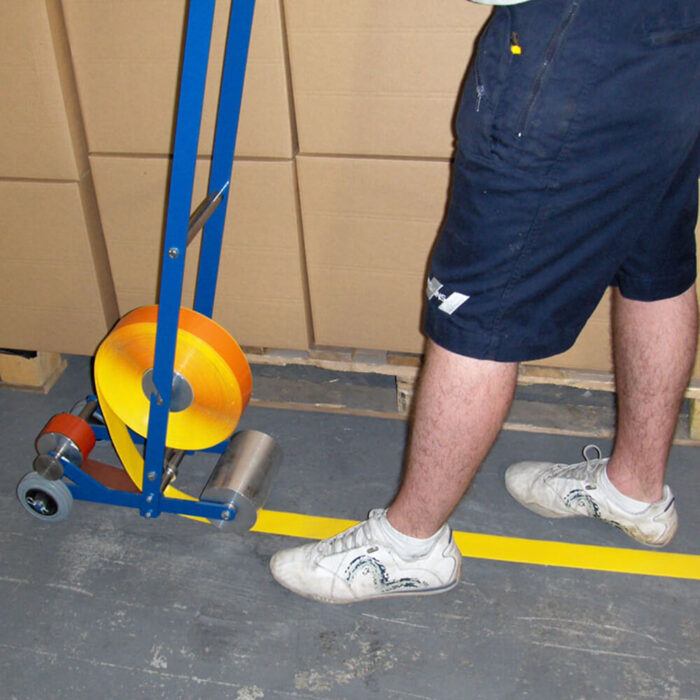

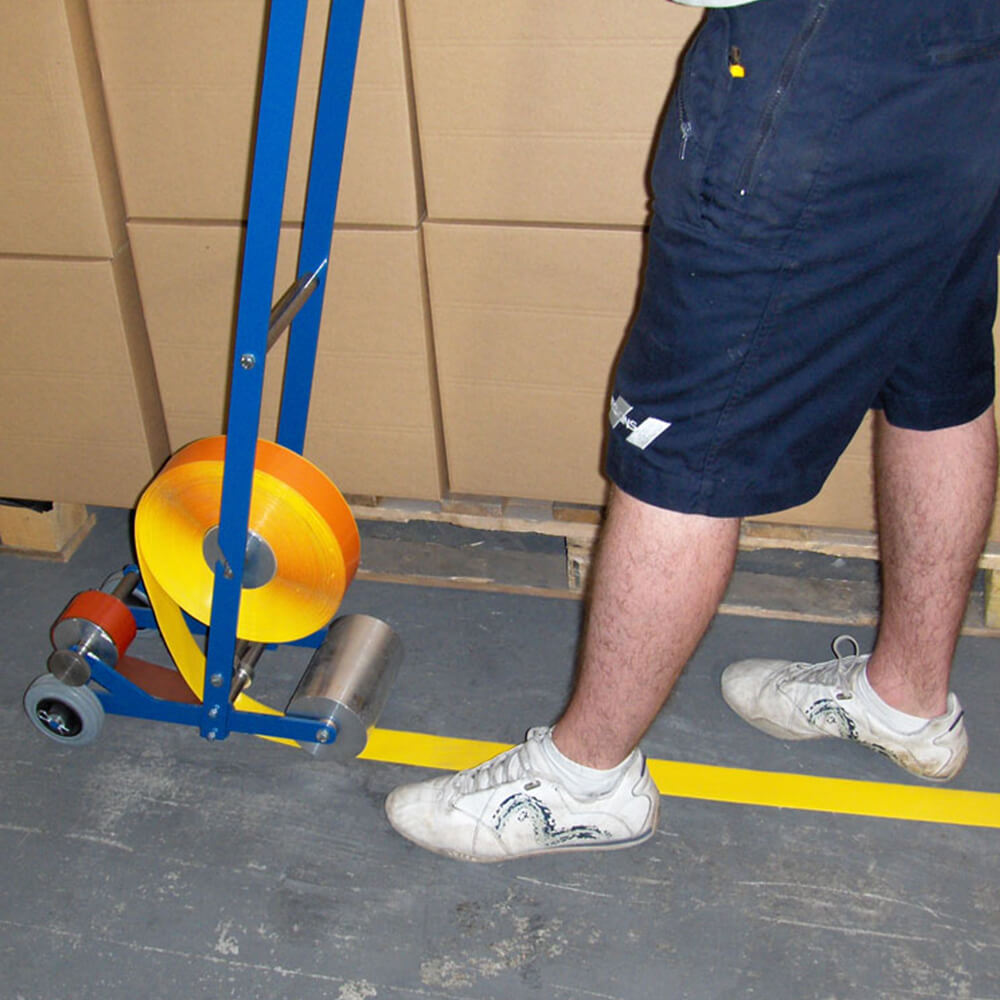

The new and improved PermaStripe & PermaRoute line marking applicator is designed for use when applying PermaStripe, PermaRoute & PermaLean floor marking tapes across large areas, improving the efficiency when choosing PermaStripe, PermaRoute, or PermaLean as your facilities marking tape of choice.
With no prior assembly required and quick setup, you can apply PermaStripe, PermaLean, and PermaRoute to a large, clean, dry surface area in a fraction of the time using our line marking tape applicator than it takes to apply by hand.
Unlike our previous model, our new line marking tape applicator has been designed to accommodate PermaStripe, PermaRoute & PermaLean. PermaStripe is reverse rolled (top surface on the inside) and PermaRoute is conventionally rolled (top surface on the outside). PermaLean is set up the same way as PermaRoute. Our new line marking tape applicator has both systems integrated to accommodate for these differences and both result in perfectly applied floor marking tape.
The new, improved PermaStripe, PermaRoute & PermaLean line marking applicator set up and operation is efficiently simple. Insert the spindle through your chosen tape, using the CNC’d instructions on the side plate of the roll holder to ensure PermaStripe, PermaRoute & PermaLean is fitted to the applicator in the right direction.

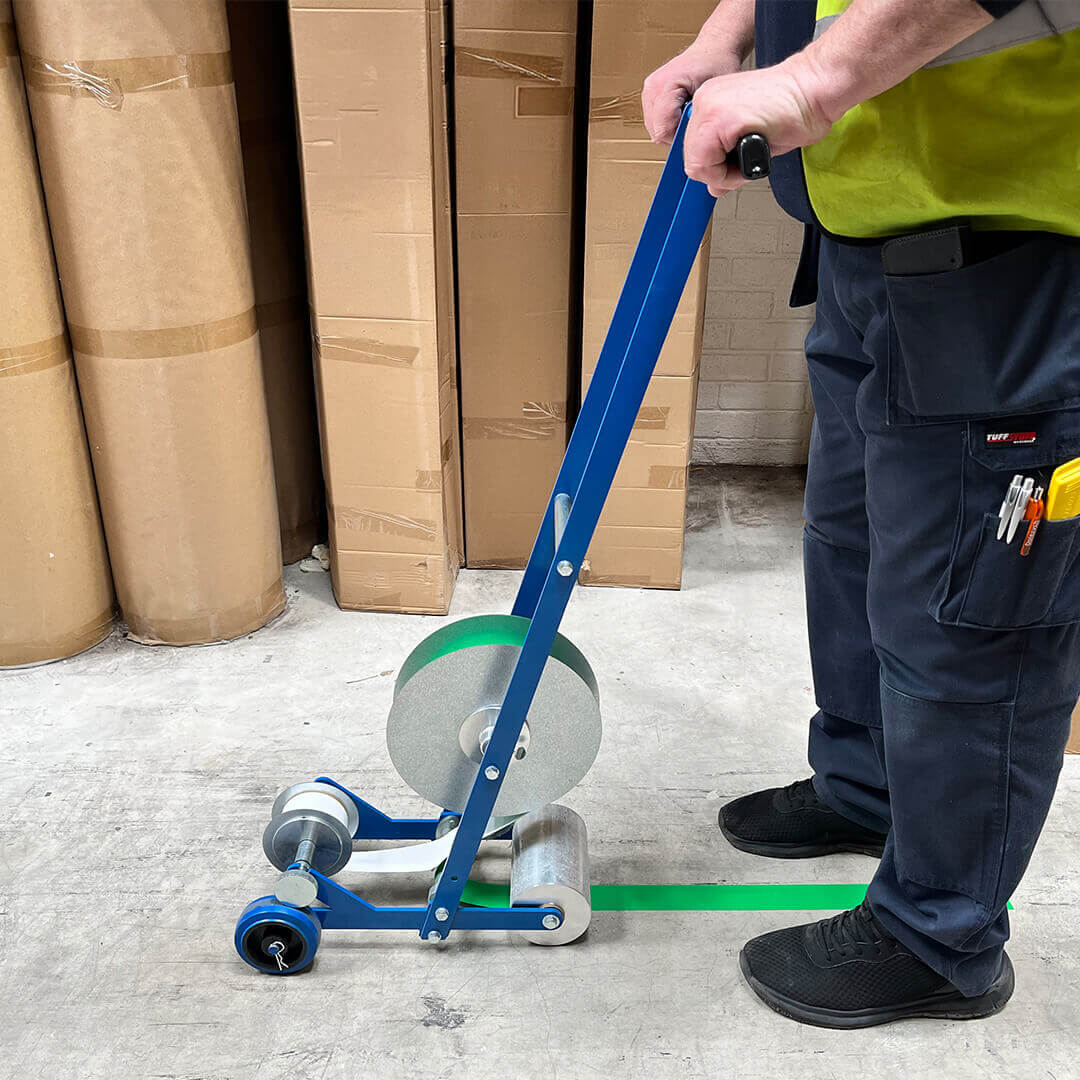

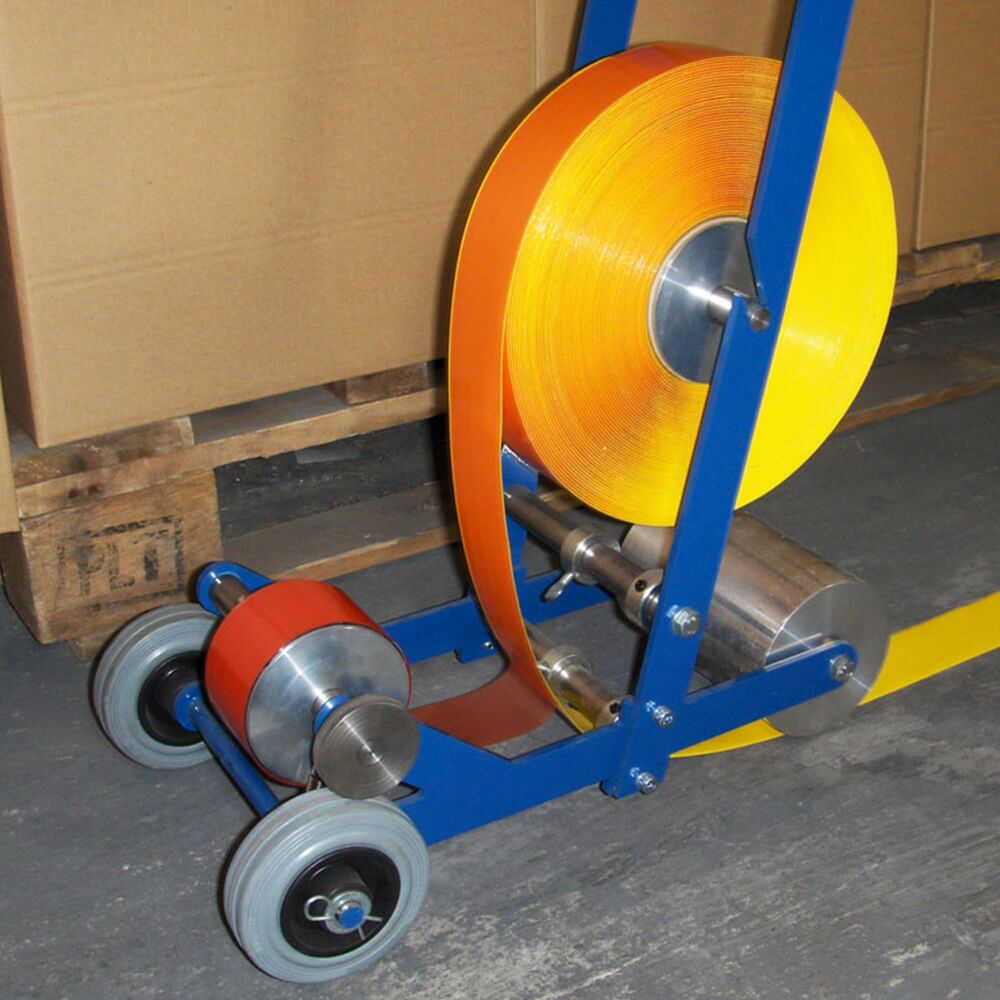

Featuring quick-pin adjustments for 50mm, 75mm, and 100mm rolls, with automated, tension-controlled backing liner removal and a large, aluminium roller to firmly press the floor marking tape to the surface. A wider wheelbase than previous also allows for better stability and the ergonomic handle will help hand and shoulder fatigue when applying over large surfaces, a welcome comfort for those with large facilities.
For more information on our line marking tape applicator, please contact us by phone or live chat. Alternatively, complete the Make an Enquiry form above and a member of our sales team will get back to you as soon as possible.
VIDEOS
PermaLean Shape Markers
Please click on the images to view the Dimensions.
Shapes (Click images to view dimensions)
L
ZN0027 – 200mm x 200mm
T
ZN0028 – 300mm x 200mm
X
ZN0029 – 300mm x 300mm
Dot – 50mm Ø
ZN0035
Dot – 90mm Ø
ZN0034
Dot – 100mm Ø
ZN0023
Arrow (Left or Right)
ZN0344 – 300mm x 230mm
Arrow
ZN0020 – 100mm x 200mm
Small Arrow
ZN0009 – 100mm x 65mm
Large Arrow
ZN0012 – 300mm x 230mm
Extra Large Arrow
ZN0333 – 1000mm x 565mm
Short Arrow
ZN0050 – 90mm
Line Block
ZN0021 – 150mm x 50mm
L-Shape
ZN0024 – 100mm x 100mm
T-Shape
ZN0129 – 100mm x 150mm
X-Shape
ZN0022 – 150mm x 150mm
Feet (Click images to view dimensions)
Feet
ZN0201- 280mm x 105mm
Feet
ZN0010 – 57mm x 104mm
Feet
ZN0011 – 120mm x 210mm
Shoes
ZN0013 – 240mm x 90mm
Boots
ZN0016 – 300mm x 120mm
Joins (Click images to view dimensions)
90° Corner
ZN0063 – To join 50mm rolls
90° Corner
ZN0054 – To join 75mm rolls
90° Corner
ZN0202 – To join 100mm rolls
45° Corner
ZN0214 – To join 50mm rolls
45° Corner
ZN0215 – To join 75mm rolls
45° Corner
ZN0216 – To join 100mm rolls
T-Junction
ZN0055 – To join 50mm rolls
T-Junction
ZN0217 – To join 75mm rolls
T-Junction
ZN0339 – To join 100mm rolls
Bridge
ZN0061 – To join 50mm rolls
Bridge
ZN0062 – To Join 75mm Rolls
Bridge
ZN0340 – To join 100mm rolls
End Cap
ZN0157 – To join 50mm rolls
End Cap
ZN0341 – To join 75mm rolls
End Cap
ZN0342 – To join 100mm rolls
Numbers (Click images to view dimensions)
0
ZN0083– 95mm
ZN0093– 180mm
ZN0093– 300mm
1
ZN0084– 95mm
ZN0094– 180mm
ZN0103– 300mm
2
ZN0085– 95mm
ZN0095– 180mm
ZN0105– 300mm
3
ZN0083– 95mm
ZN0096– 180mm
ZN0103– 300mm
4
ZN0087– 95mm
ZN0097– 180mm
ZN0107– 300mm
5
ZN0088– 95mm
ZN0098– 180mm
ZN0108– 300mm
6
ZN0089– 95mm
ZN0099– 180mm
ZN0109– 300mm
7
ZN0090– 95mm
ZN0100– 180mm
ZN0110– 300mm
8
ZN0091– 95mm
ZN0101– 180mm
ZN0111– 300mm
9
ZN0092– 95mm
ZN0102– 180mm
ZN0112– 300mm
Letters (Click images to view dimensions)
A
ZN0229– 95mm
ZN0255– 180mm
B
ZN0230– 95mm
ZN0230– 180mm
C
ZN0231– 95mm
ZN0257– 180mm
D
ZN0232– 95mm
ZN0258– 180mm
E
ZN0233– 95mm
ZN0259– 180mm
F
ZN0234– 95mm
ZN0260– 180mm
G
ZN0235– 95mm
ZN0261 – 180mm
H
ZN0236– 95mm
ZN0262– 180mm
I
ZN0237– 95mm
ZN0263– 180mm
J
ZN0238– 95mm
ZN0264– 180mm
K
ZN0239– 95mm
ZN0265– 180mm
L
ZN0240– 95mm
ZN0266– 180mm
M
ZN0241– 95mm
ZN0267– 180mm
N
ZN0242– 95mm
ZN0268– 180mm
O
ZN0243– 95mm
ZN0269– 180mm
P
ZN0244– 95mm
ZN0270– 180mm
Q
ZN0245 – 95mm
ZN0271– 180mm
R
ZN0246– 95mm
ZN0272– 180mm
S
ZN0247– 95mm
ZN0273– 180mm
T
ZN0248– 95mm
ZN0274– 180mm
U
ZN0249– 95mm
ZN0275– 180mm
V
ZN0250– 95mm
ZN0276– 180mm
W
ZN0251– 95mm
ZN0277– 180mm
X
ZN0252– 95mm
ZN0278– 180mm
Y
ZN0253– 95mm
ZN0279– 180mm
Z
ZN0254– 95mm
ZN0280– 180mm
Colours
H6907N
Pantone / RAL
Black U / 9011
Black
H6907R
Pantone / RAL
1797 U / 3020
Red
H6907O
Pantone / RAL
130 U / 1007
Orange
H6907Y
Pantone / RAL
107 U / 1016
Yellow
H6907V
Pantone / RAL
361 U / 6018
Green
H6907B
Pantone / RAL
2995 U / 5015
Blue
H6907W
Pantone / RAL
White / 9003
White
