H6903
- Layered construction
- Laminated, colour surface print
- Low profile
- 960mu thick
- Roll widths up to 1260mm
- Free samples
- 2-year guarantee
5S Optimisation
2 Year Warranty
Quality Line Marking
Approved Reseller
Enquiry
Enquiry
Samples
PermaRoute Overview
PermaRoute is the worlds only complete floor marking system. Developing PermaRoute over the years has resulted in a range that can encompass every section of floor marking for factories, warehouses, assembly areas and logistics bases.
PermaRoute has a layered construction. A PVC material, with a tough, protective, clear top laminate and a strong, permanent adhesive on the underside, results in a material that is impervious to all but the heaviest scuffs and scrapes. The top laminate protecting the PVC layer, either as a solid colour or with a surface print.

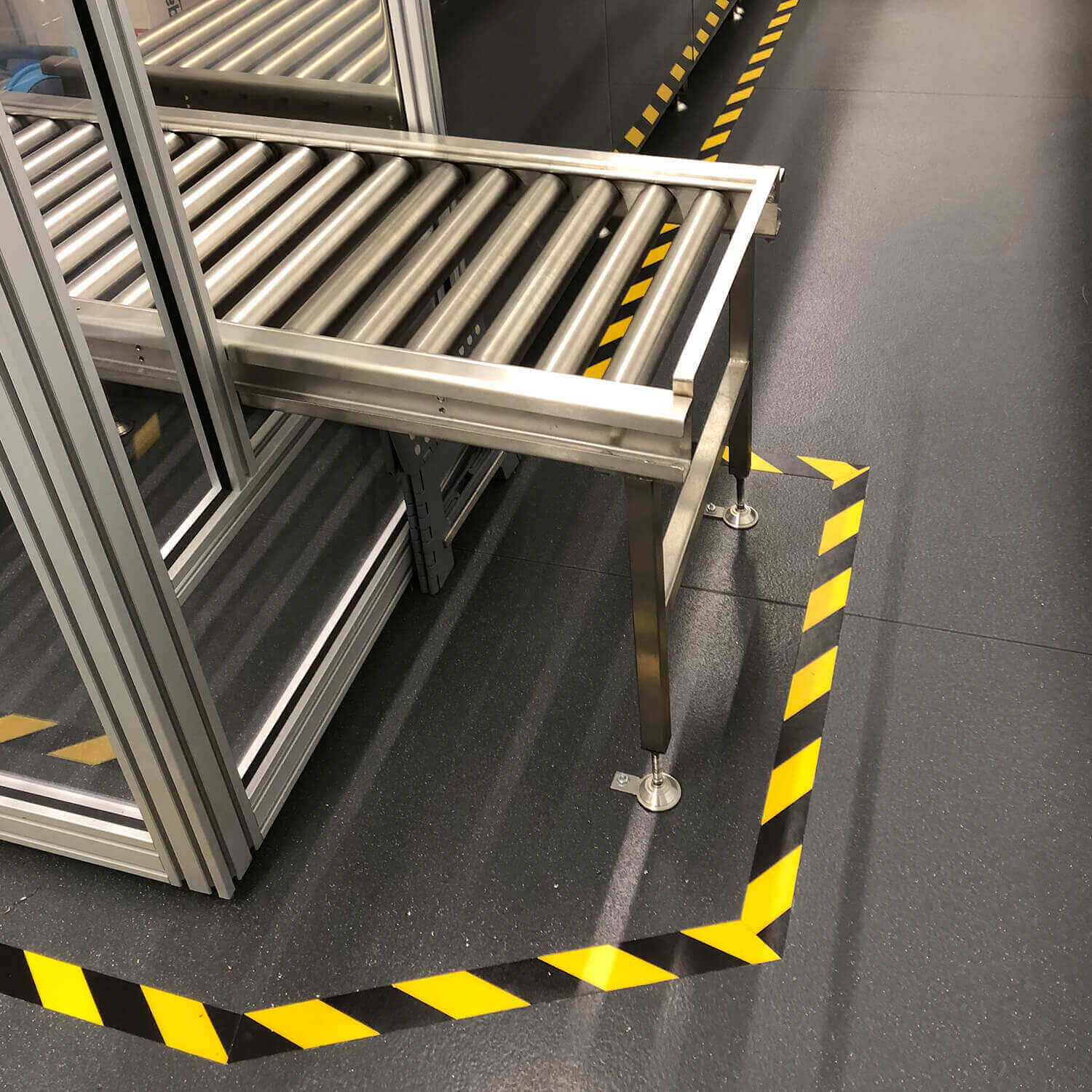

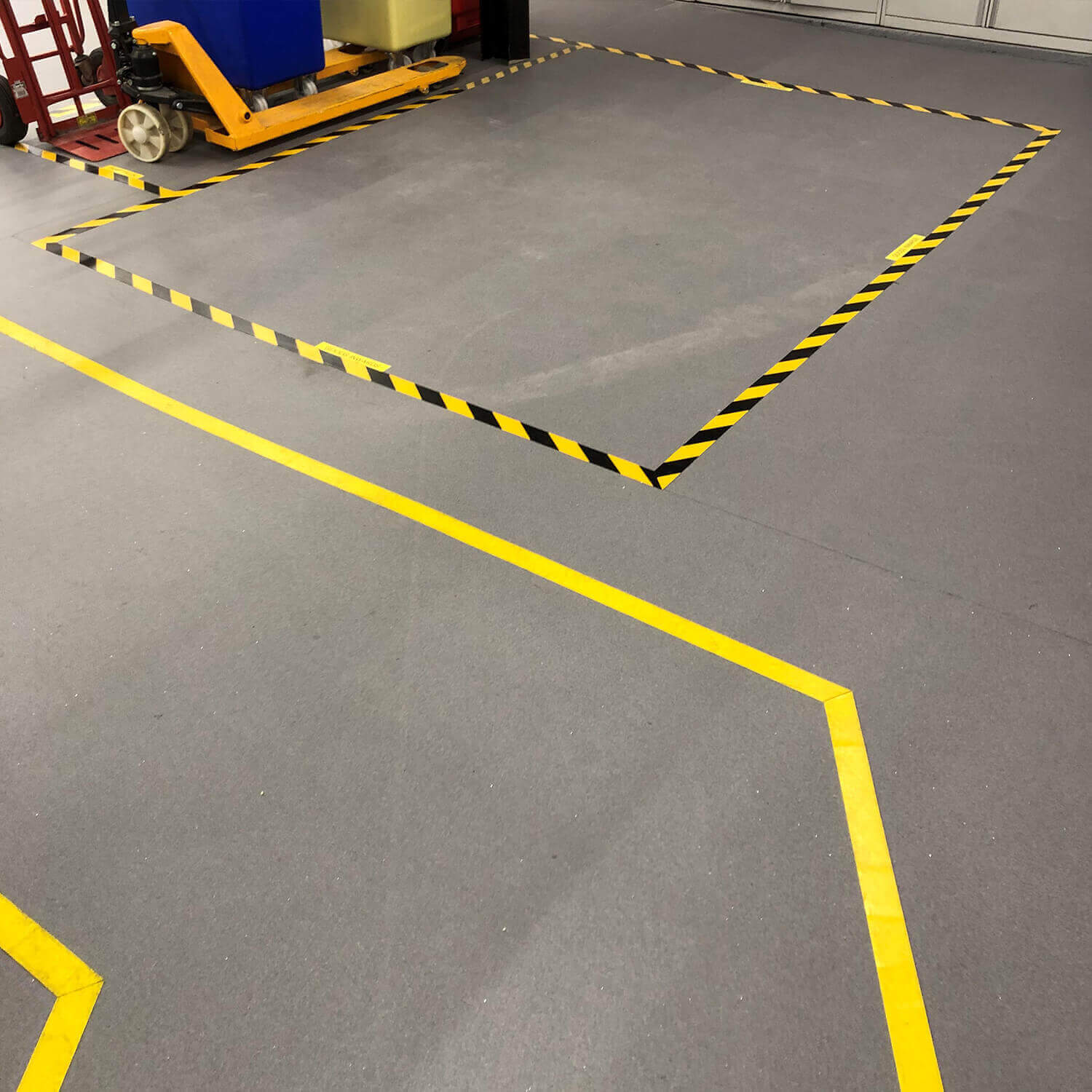

PermaRoute heavy duty line marking tape allows for the easy installation of clean lines in the workplace. Doing so helps to create walkways and routes for foot and vehicle traffic to perform tasks efficiently and safely as well as provide safe guidance through work areas. Designated, colour-coded storage areas can also be marked out to help optimise processes.
Application
Application of PermaRoute is easy with a clean, dry surfaces the only preparation required before application. Peeling back the liner and sticking down is all that is required and once applied, the area is ready for use again. This results in minimal downtime, something that is not the case with resin and painted lines. Combining with PermaRoute die-cuts creates an effective and visually appealing system within the workplace.
PermaRoute Sizes

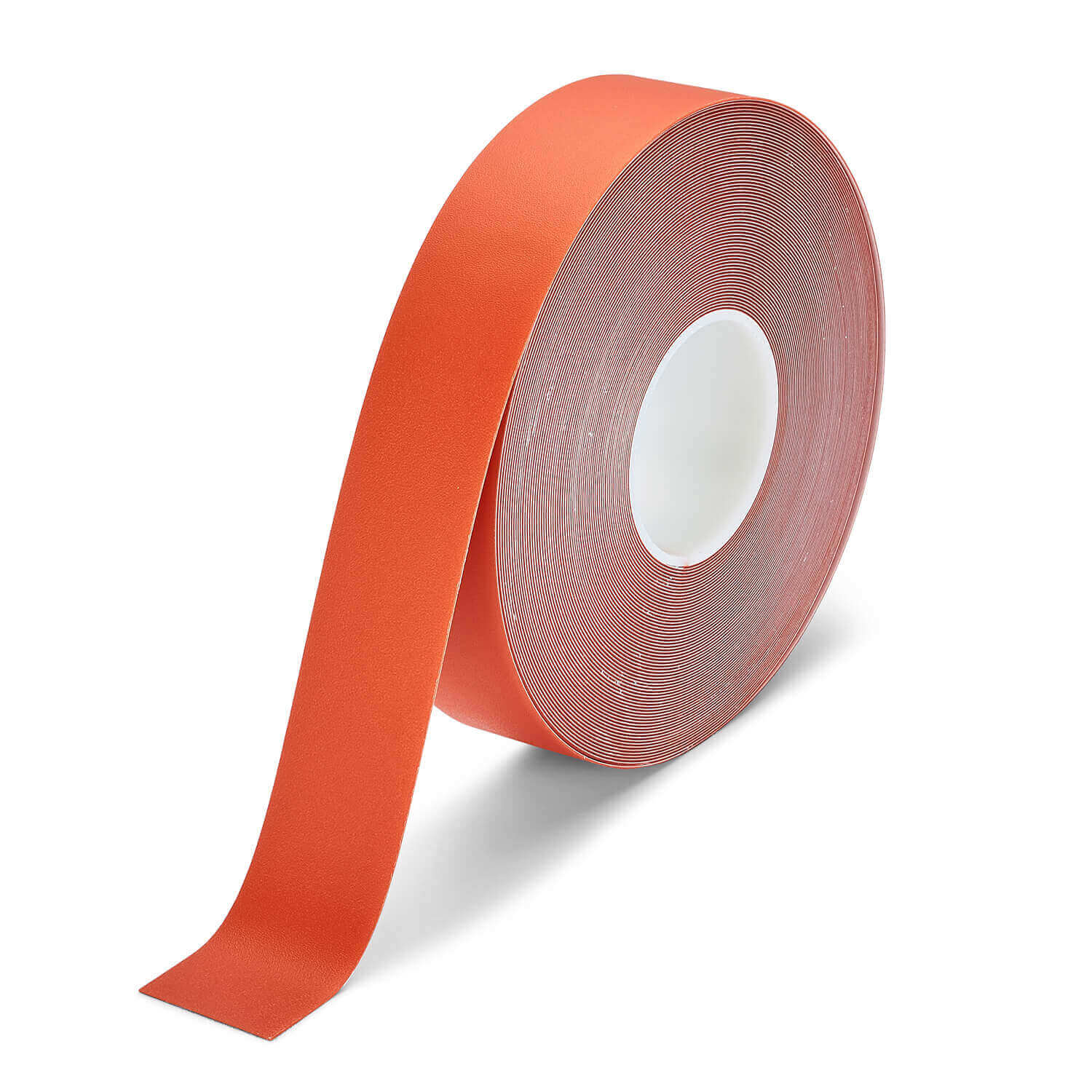

PermaRoute is available for immediate dispatch in 50mm, 75mm and 100mm roll widths at a length of 30m and in a variety of die-cut shapes. View the colour options of PermaRoute within the colours tab.
Custom options are available dependent on order quantities.
Die-Cuts
We have a massive selection of various die-cut shapes to compliment the PermaRoute system. Combining die-cut shapes with the PermaRoute lines allows you to create a system that is perfect for your needs.
PermaRoute 2-Year Warranty
The Heskins warranty for PermaRoute is conditionally warranted for 2 years from product purchase. Warranty claims are only limited to the replacement of PermaRoute. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.
If you would like to request samples, please complete the PermaRoute sample request form.
To enquire further, or place an order, you can contact our sales team via phone or live chat. Alternatively, complete the Make an Enquiry form above and we will get back to you as soon as possible.
VIDEOS
Selling Points Here
Cutting etc.
Cutting etc.
Cutting etc.
PermaStripe Shape Markers
Please click on the images to view the Dimensions.
Shapes (Click images to view dimensions)
L
ZN0027 – 200mm x 200mm
T
ZN0028 – 300mm x 200mm
X
ZN0029 – 300mm x 300mm
Dot – 50mm Ø
ZN0035
Dot – 90mm Ø
ZN0034
Dot – 100mm Ø
ZN0023
Arrow (Left or Right)
ZN0344 – 300mm x 230mm
Arrow
ZN0020 – 100mm x 200mm
Small Arrow
ZN0009 – 100mm x 65mm
Large Arrow
ZN0012 – 300mm x 230mm
Extra Large Arrow
ZN0333 – 1000mm x 565mm
Short Arrow
ZN0050 – 90mm
Line Block
ZN0021 – 150mm x 50mm
L-Shape
ZN0024 – 100mm x 100mm
T-Shape
ZN0129 – 100mm x 150mm
X-Shape
ZN0022 – 150mm x 150mm
Feet (Click images to view dimensions)
Feet
ZN0201- 280mm x 105mm
Feet
ZN0010 – 57mm x 104mm
Feet
ZN0011 – 120mm x 210mm
Shoes
ZN0013 – 240mm x 90mm
Boots
ZN0016 – 300mm x 120mm
Joins (Click images to view dimensions)

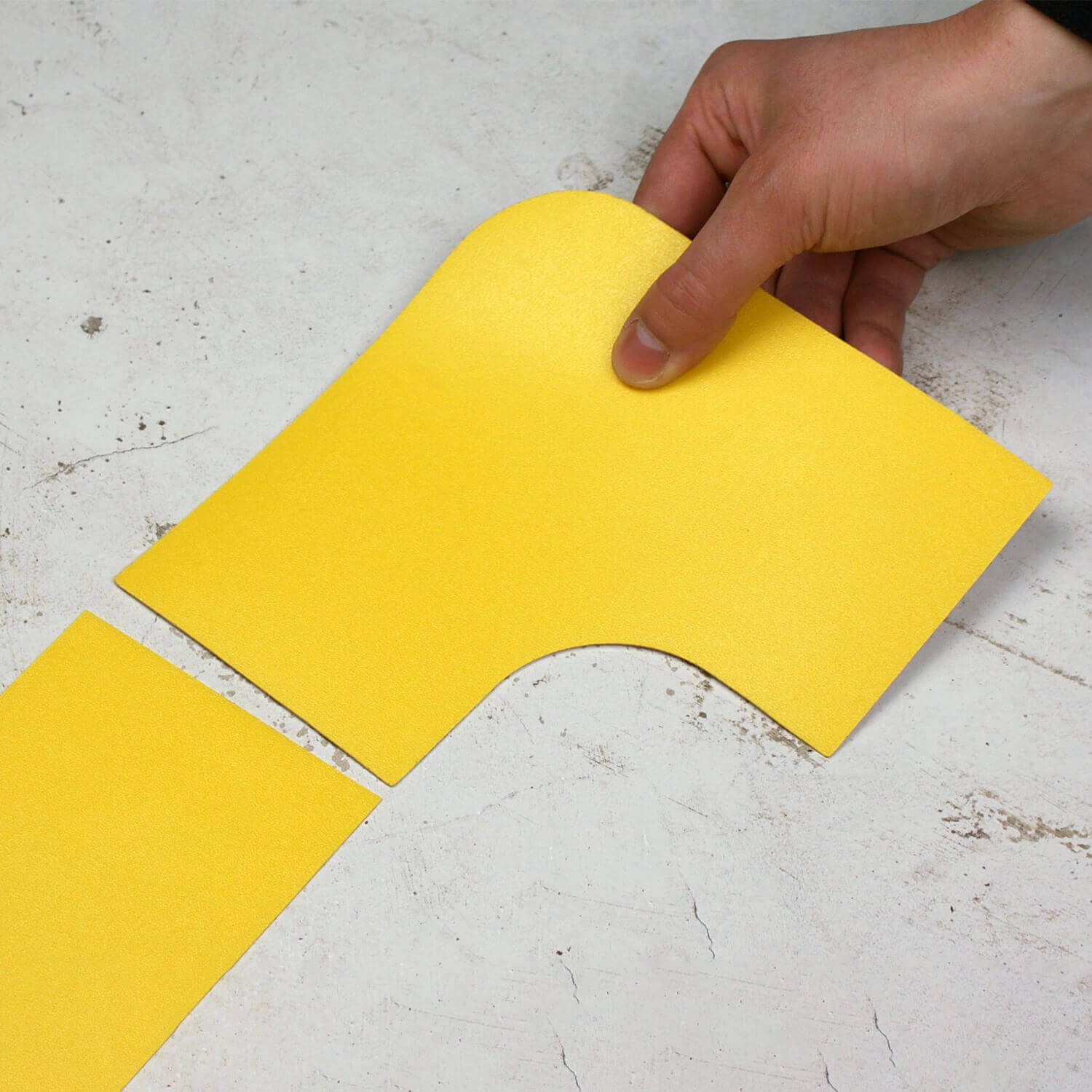

90° Corner
ZN0063 – To join 50mm rolls
90° Corner
ZN0054 – To join 75mm rolls
90° Corner
ZN0202 – To join 100mm rolls
45° Corner
ZN0214 – To join 50mm rolls
45° Corner
ZN0215 – To join 75mm rolls
45° Corner
ZN0216 – To join 100mm rolls
T-Junction
ZN0055 – To join 50mm rolls
T-Junction
ZN0217 – To join 75mm rolls
T-Junction
ZN0339 – To join 100mm rolls
Bridge
ZN0061 – To join 50mm rolls
Bridge
ZN0062 – To Join 75mm Rolls
Bridge
ZN0340 – To join 100mm rolls
End Cap
ZN0157 – To join 50mm rolls
End Cap
ZN0341 – To join 75mm rolls
End Cap
ZN0342 – To join 100mm rolls
Numbers (Click images to view dimensions)
0
ZN0083– 95mm
ZN0093– 180mm
ZN0093– 300mm
1
ZN0084– 95mm
ZN0094– 180mm
ZN0103– 300mm
2
ZN0085– 95mm
ZN0095– 180mm
ZN0105– 300mm
3
ZN0083– 95mm
ZN0096– 180mm
ZN0103– 300mm
4
ZN0087– 95mm
ZN0097– 180mm
ZN0107– 300mm
5
ZN0088– 95mm
ZN0098– 180mm
ZN0108– 300mm
6
ZN0089– 95mm
ZN0099– 180mm
ZN0109– 300mm
7
ZN0090– 95mm
ZN0100– 180mm
ZN0110– 300mm
8
ZN0091– 95mm
ZN0101– 180mm
ZN0111– 300mm
9
ZN0092– 95mm
ZN0102– 180mm
ZN0112– 300mm
Letters (Click images to view dimensions)
A
ZN0229– 95mm
ZN0255– 180mm
B
ZN0230– 95mm
ZN0230– 180mm
C
ZN0231– 95mm
ZN0257– 180mm
D
ZN0232– 95mm
ZN0258– 180mm
E
ZN0233– 95mm
ZN0259– 180mm
F
ZN0234– 95mm
ZN0260– 180mm
G
ZN0235– 95mm
ZN0261 – 180mm
H
ZN0236– 95mm
ZN0262– 180mm

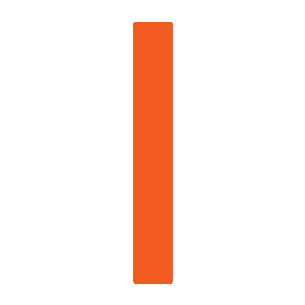

I
ZN0237– 95mm
ZN0263– 180mm
J
ZN0238– 95mm
ZN0264– 180mm
K
ZN0239– 95mm
ZN0265– 180mm
L
ZN0240– 95mm
ZN0266– 180mm
M
ZN0241– 95mm
ZN0267– 180mm
N
ZN0242– 95mm
ZN0268– 180mm
O
ZN0243– 95mm
ZN0269– 180mm
P
ZN0244– 95mm
ZN0270– 180mm
Q
ZN0245 – 95mm
ZN0271– 180mm
R
ZN0246– 95mm
ZN0272– 180mm
S
ZN0247– 95mm
ZN0273– 180mm
T
ZN0248– 95mm
ZN0274– 180mm
U
ZN0249– 95mm
ZN0275– 180mm
V
ZN0250– 95mm
ZN0276– 180mm
W
ZN0251– 95mm
ZN0277– 180mm
X
ZN0252– 95mm
ZN0278– 180mm
Y
ZN0253– 95mm
ZN0279– 180mm
Z
ZN0254– 95mm
ZN0280– 180mm
Colours
H6903N
Pantone / RAL
Black 6 U / 9004

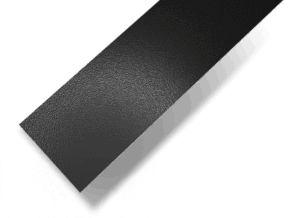

Black
H6903R
Pantone / RAL
1795 U / 3020

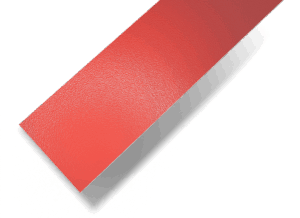

Red
H6903O
Pantone / RAL
021 U / 2009

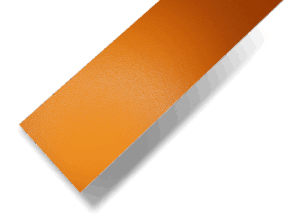

Orange
H6903Y
Pantone / RAL
114 U / 1018

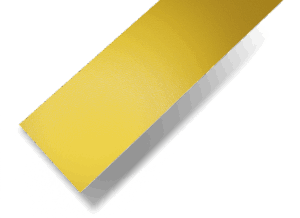

Yellow
H6903F
Pantone / RAL
803 U / 1016

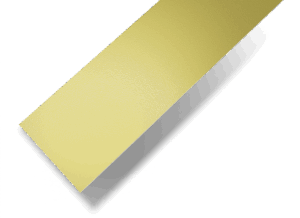

Fluorescent Yellow
H6903YNA
Pantone / RAL
137 U / 1003
Special Yellow
H6903V
Pantone / RAL
7488 U / 6018
Green
H6903B
Pantone / RAL
2985 U / 5012

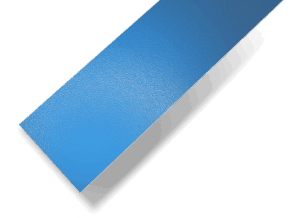

Blue
H6901J
Pantone / RAL
2945 U / 5002

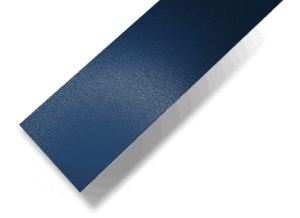

Dark Blue
H6903W
Pantone / RAL
7541 U / 9003

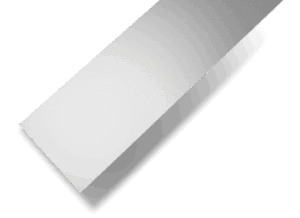

White

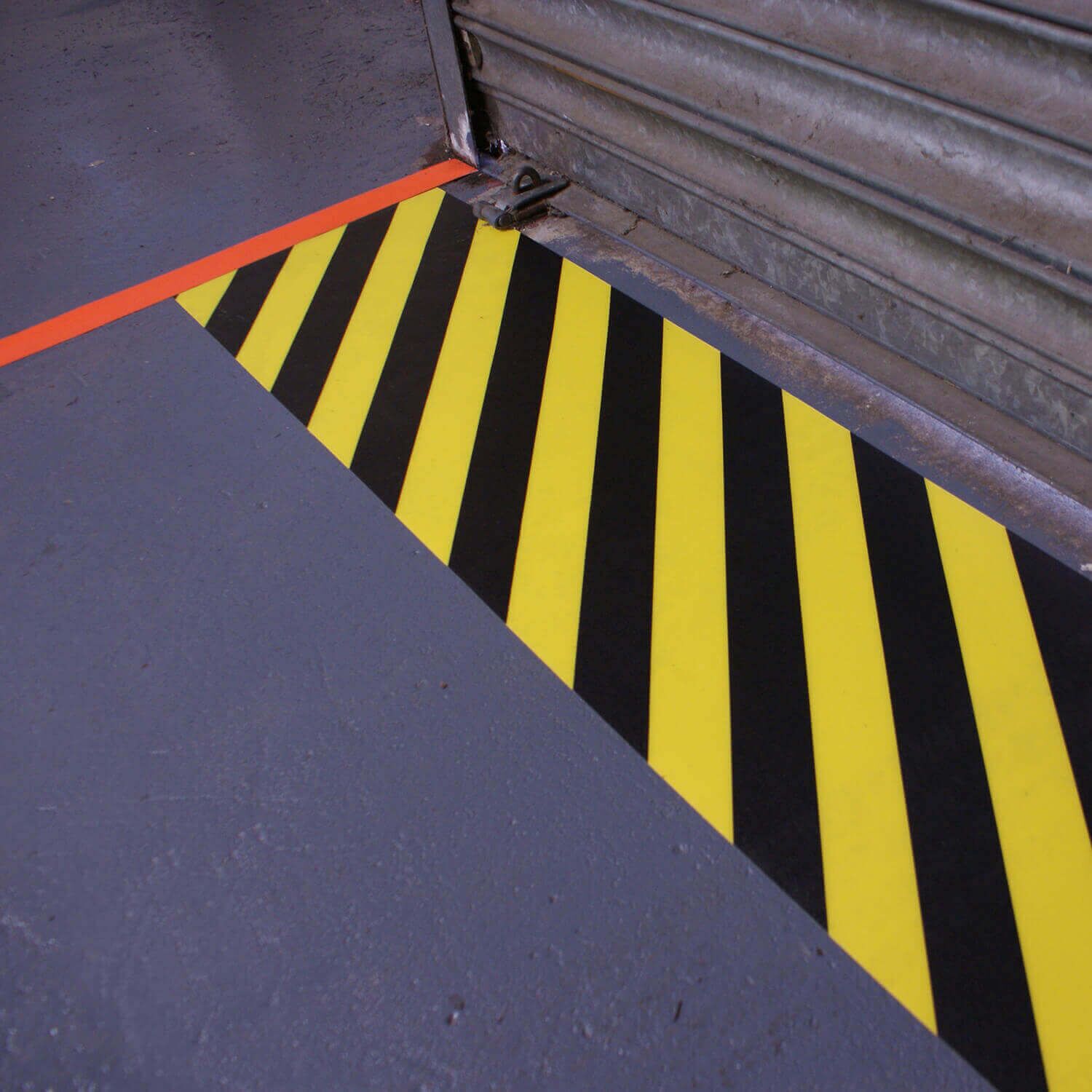

H6903D
Pantone / RAL
Black: Black 6 / 9004
Yellow: 1235 U / 1021

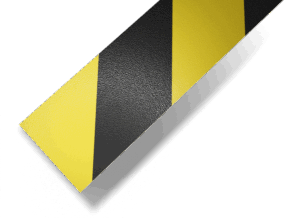

Black/Yellow
H6903A
Pantone / RAL
Red: 32 U / 3028
White: White / 9003
Red/White

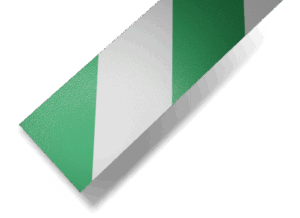

H6903H
Pantone / RAL
Green: 356 U / 6002
White: White / 9010
Black/White

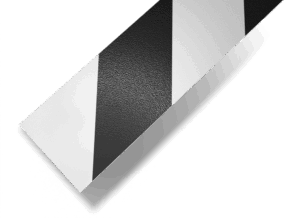

H6903E
Pantone / RAL
Black: Black 6 U / 9004
White: White / 9003
Black/White
H6903P
Pantone / RAL
Black: Black 6 U / 9004
Orange: 021 U / 2009

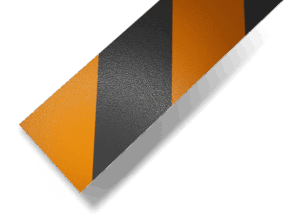

Black/Orange
H6903X
Pantone / RAL
2274CP/6019
Glow in the dark
Downloads
Photo and Media Download Library
Create a free Heskins Download Suite account to access all downloadable content available for products featured on the PermaStripe website. This link takes you to the PermaRoute section of the content library.
TECH SPECS
| HEADING 1 | HEADING 2 | HEADING 3 | HEADING 4 |
|---|---|---|---|
| ROW 1 COLUMN 1 | ROW 1 COLUMN 2 | ROW 1 COLUMN 3 | ROW 1 COLUMN 4 |
PermaRoute Videos
Top 5 Installation Mistakes (and How to Avoid Them)
Tape Ancillaries to Help Apply Marking Tapes
PermaStripe VS PermaRoute VS PermaLean
How to Apply Marking Tapes Correctly
How to Repair Marking Tape
Before and After 5S Optimisation
How to Fix Anti Slip Tape and Perma Family Tape
Hoe to Apply PermaRoute Letters
Why Choose PermaRoute?
How to Apply PermaRoute Shapes
How To Apply PermaRoute L Shape Arrows
360 View
Application Graphics
H6903 PermaRoute – FAQ
What is PermaRoute H6903?
PermaRoute H6903 is an industrial floor marking system for creating warehouse aisles, pedestrian routes, storage zones and workplace floor signage. The range combines floor marking tape with arrows, footprints, letters, numbers, corners, junctions and other markers to create a coordinated visual management system.
What makes PermaRoute different from standard floor marking tape?
PermaRoute is more than continuous line marking tape. Its range of colours, shapes, letters, numbers and directional markers allows businesses to create complete routes, storage locations, work zones and warehouse wayfinding systems using one coordinated product range.
Can PermaRoute be used for warehouse aisles and traffic routes?

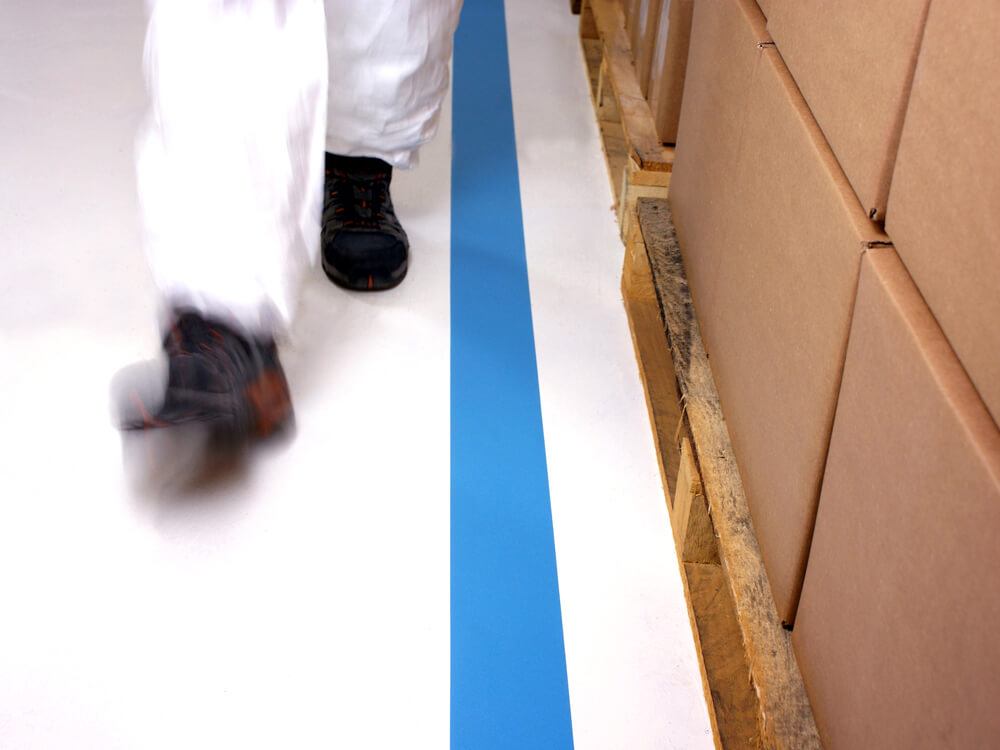

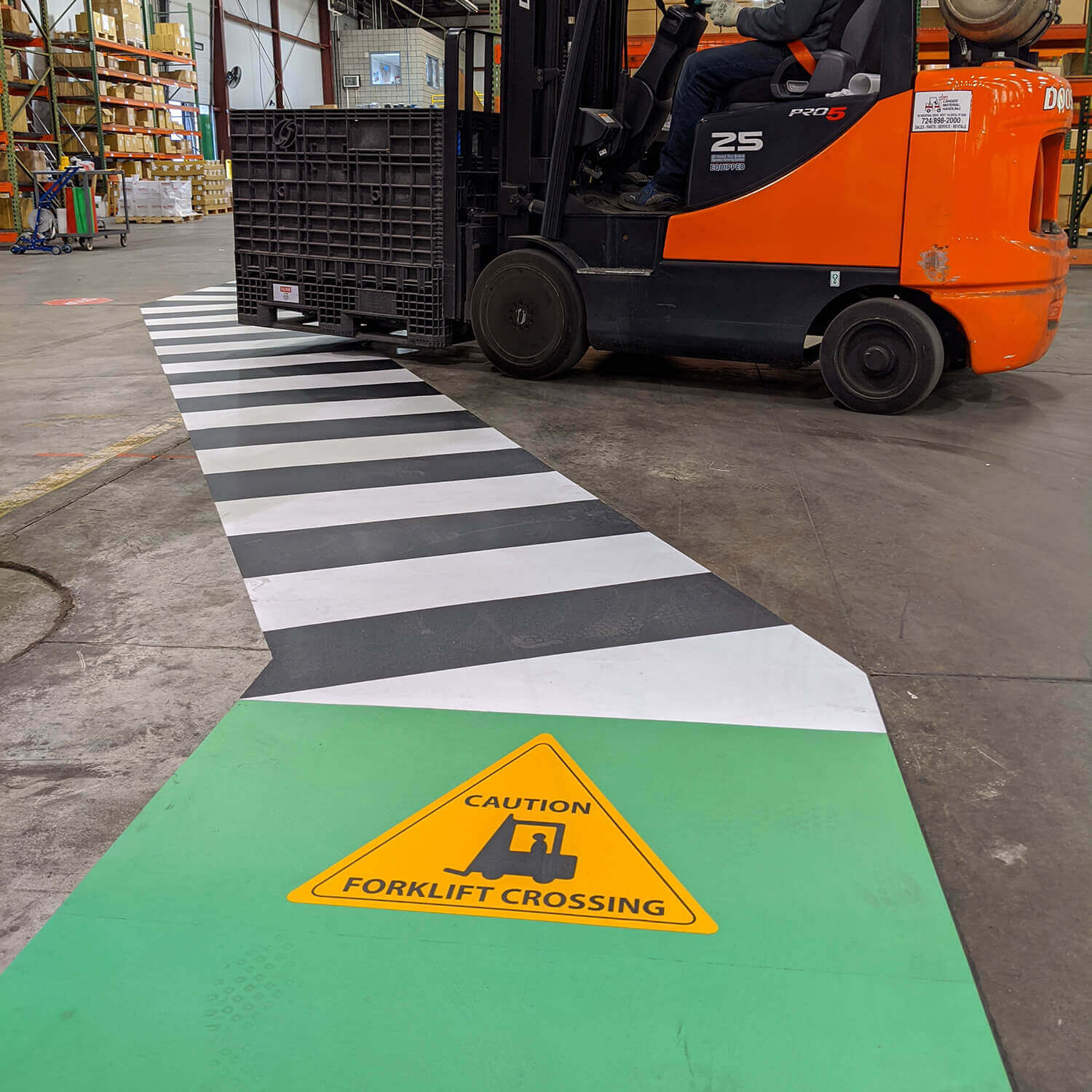

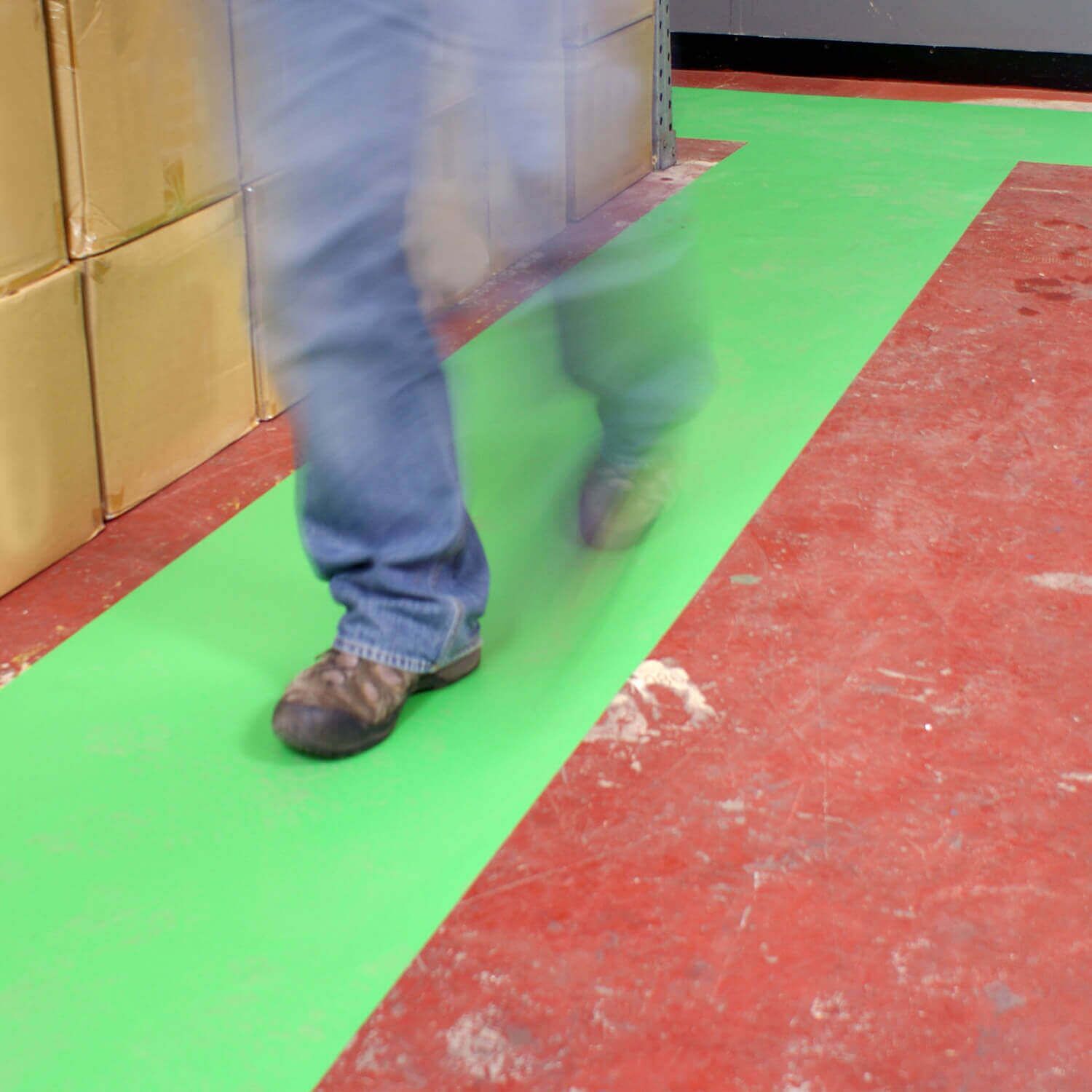

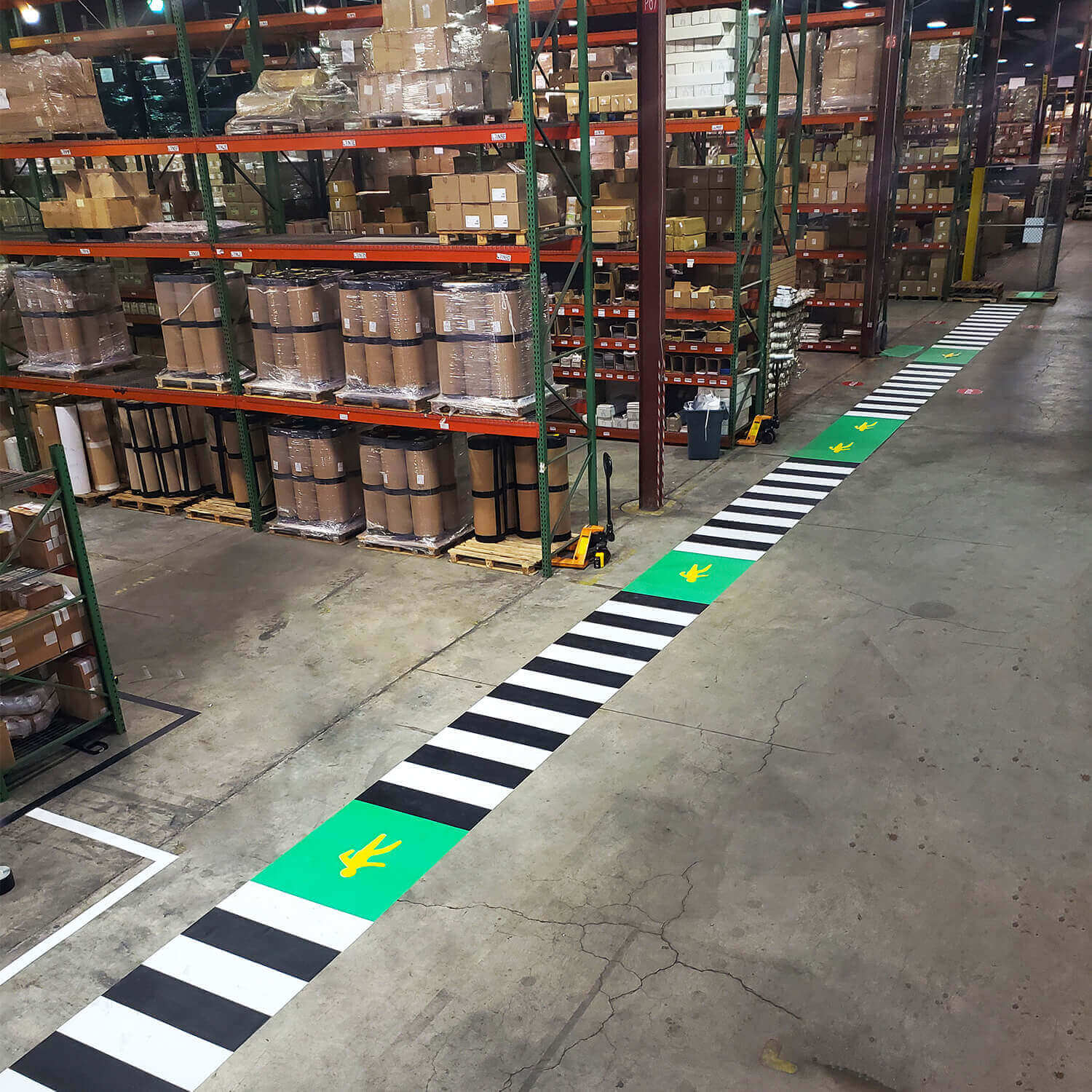

Yes. PermaRoute can define pedestrian walkways, forklift routes, warehouse aisles and other traffic areas. Coloured lines, arrows and footprints can make different routes easier to recognise as part of a site-specific traffic management and safety floor marking system.
Can PermaRoute be used for 5S and lean floor marking?
Yes. PermaRoute can support 5S floor marking by clearly identifying storage locations, equipment positions, work cells, pedestrian routes and operational zones.
Its combination of floor tape, colours, shapes, letters and numbers makes it particularly useful for creating consistent visual management systems in lean manufacturing environments.
Can PermaRoute be used for warehouse wayfinding and location systems?
Yes. PermaRoute can combine floor lines, arrows, letters and numbers to identify aisles, bays, picking zones and destinations throughout a warehouse.
Location references such as A1, B12 or Zone 4 can help employees identify the correct area more quickly and complement an existing warehouse management or barcode system. Warehouse location and barcode systems are prominent themes in the supplied search research.
Can PermaRoute mark pallet and equipment locations?

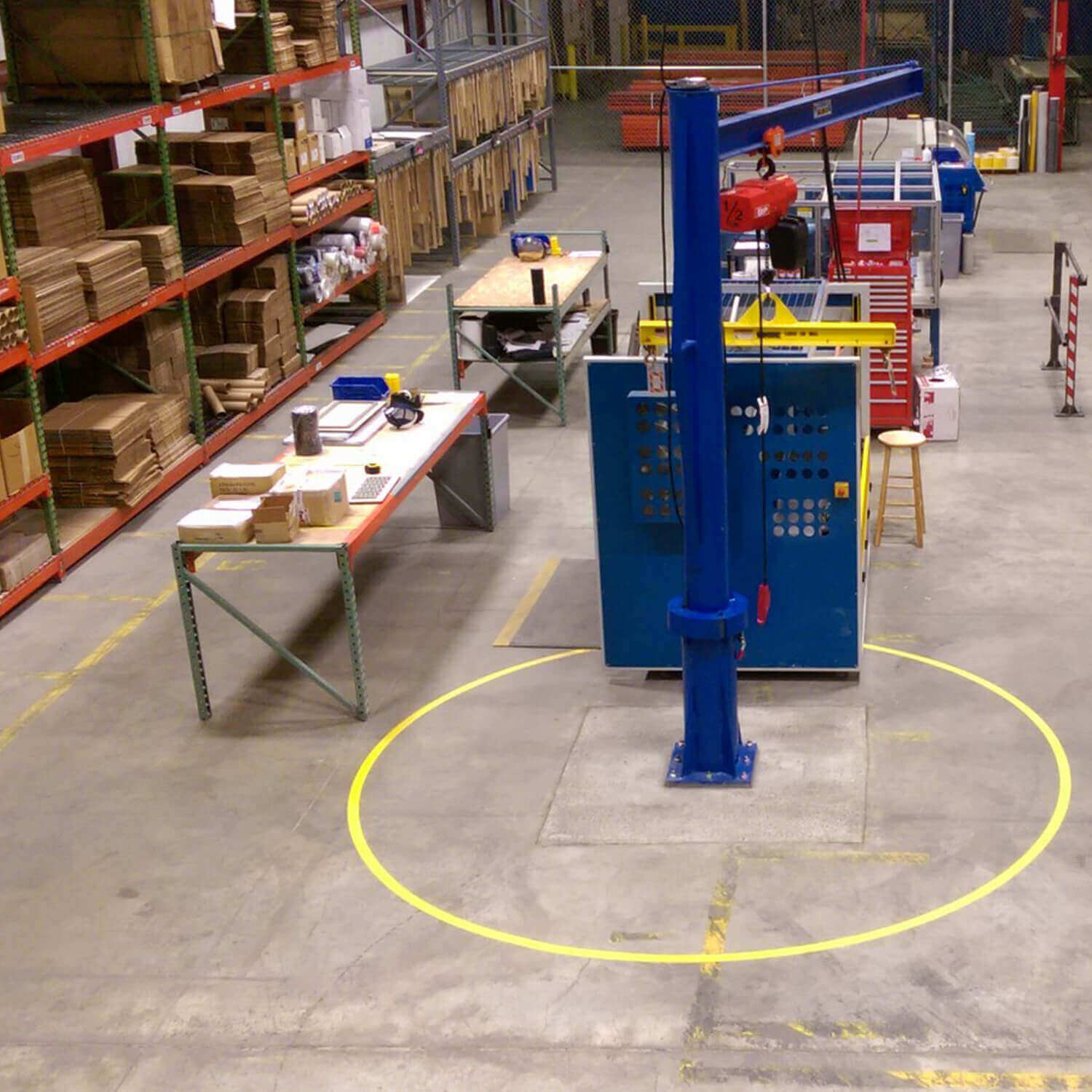

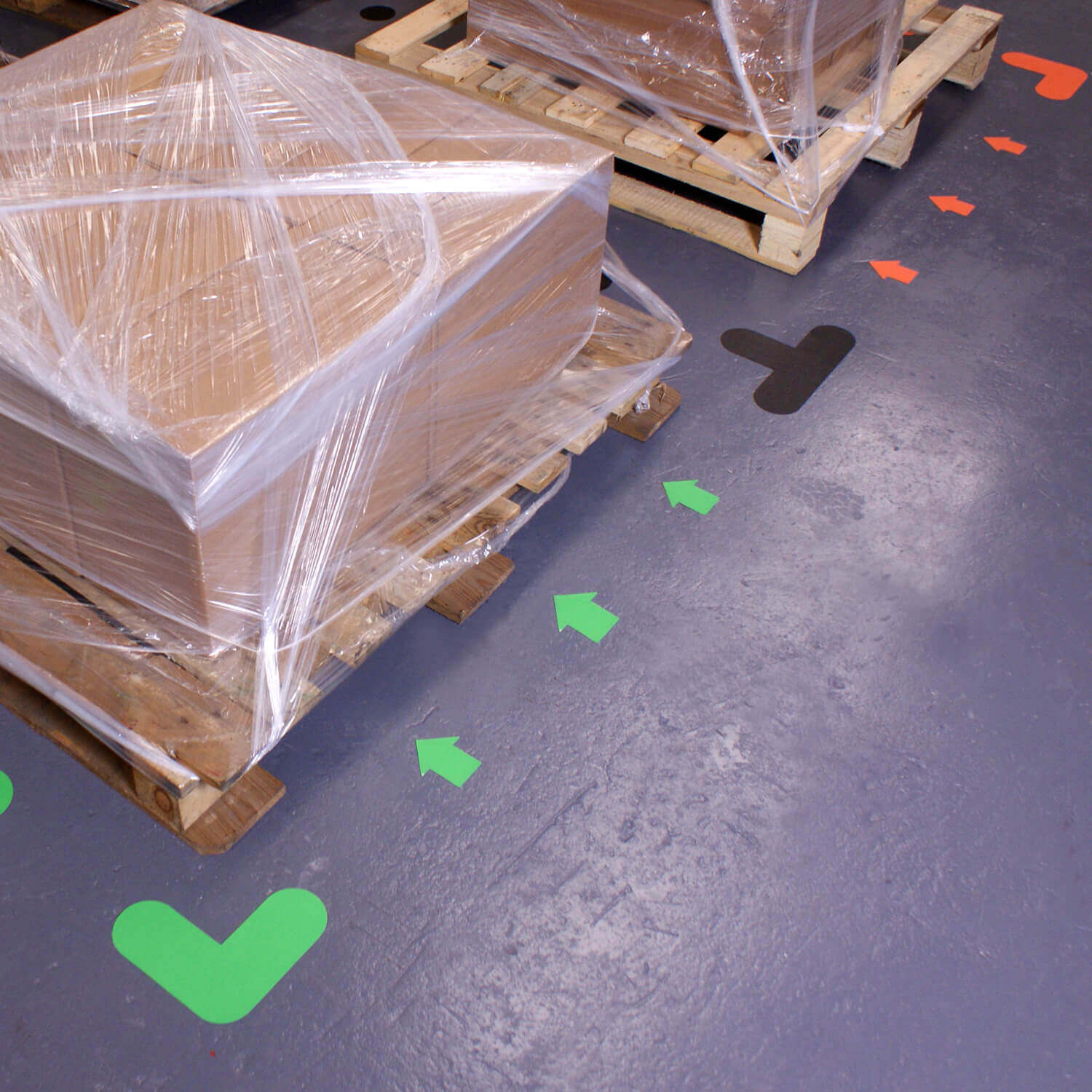

Yes. L-shapes, T-shapes, X-shapes, dots and line blocks can identify pallet locations, equipment positions, waste stations and storage areas.
Using individual floor markers rather than enclosing every location with continuous tape can also reduce the amount of floor marking material required.
What PermaRoute floor marker shapes are available?
PermaRoute is available as arrows, dots, footprints, shoes, boots, line blocks and L-, T- and X-shaped markers. Dedicated corners, junctions, bridges and end caps are also available to create neat changes of direction and intersections within a floor marking layout.
Can PermaRoute be used for custom printed floor signage?
Yes. PermaRoute uses a layered construction with a clear protective laminate over the coloured or printed layer. This makes the system suitable for printed designs, letters, numbers, symbols and bespoke floor signage.
Custom options will depend on the required design, dimensions and order quantity.
Can PermaRoute be used with barcodes or QR codes?
PermaRoute can incorporate printed warehouse identification information, including barcodes or QR codes, where suitable.
Any scannable code should be tested under the actual lighting, viewing angle and scanning distance before a larger production run to ensure reliable performance.
What is the difference between PermaRoute and PermaStripe?
PermaRoute H6903 uses a layered PVC construction with a protective clear laminate, making it particularly suited to detailed floor signage, printed designs and complete wayfinding systems.
PermaStripe H6901 is thicker at approximately 1.3mm and uses homogeneous PVC with an embossed surface, making it primarily a heavy-duty line marking tape.
What sizes and colours is PermaRoute available in?
PermaRoute is available in standard 50mm, 75mm and 100mm widths, with rolls measuring 30 metres long. Wider material can also be produced for specialist requirements.
Colours include black, red, orange, yellow, fluorescent yellow, green, blue, dark blue and white, alongside hazard-striped and specialist options.
How do you install PermaRoute floor marking tape?
Apply PermaRoute to a clean, dry surface. Remove the release liner, position the tape or marker and press it firmly onto the floor.
The self-adhesive system requires no paint curing or drying period, allowing routes, markers and floor signage to be installed with minimal disruption.
How durable is PermaRoute?
PermaRoute uses a clear protective laminate to help protect the coloured or printed layer from routine scuffs and wear. H6903 carries a conditional two-year warranty from purchase.
Pallets, transit skids and other heavy objects should not be dragged, pushed or scraped across the marking, as this type of damage is excluded from the warranty.
Can I request a PermaRoute sample before ordering?
Yes. Samples are available so you can assess the colour, finish, profile and adhesion of PermaRoute before installing it throughout a warehouse or factory. Sampling is particularly useful when planning a larger 5S, wayfinding or warehouse floor marking project.
